Dormer F300M10X1.5/16 HSS Metric Coarse Adjustable Die M10 x 1.50mm

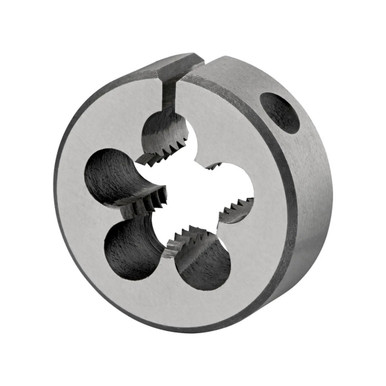

The Dormer F300M10X1.5/16 is a single adjustable circular split die, for ISO-Metric thread M10 with 1.50 mm pitch, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.15mm, dimensions according to BS 1127:1950 standard with 1.5/16" outside diameter and 7/16" thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
Features:
- Bright (uncoated)
- Thread Form, Metric Coarse
- BS 1127:1950 – Round Dies Standards
- Thread Tolerance Class
- Die Thread Chamfer to Pitch Ratio (1.75×TP)
- High Speed Steel Tool Material
- Right Hand Rotation / Cutting
Specification:
- Body diameter: fractional inch (BD) 1.5/16
- Body diameter: millimeter (BD) 33.34 mm
- Overall length: fractional inch (OAL) 7/16
- Overall length: millimeter (OAL) 11.11 mm
- Thread diameter - millimeter (TD) 10 mm
- Thread diameter size (TDZ): 10
- Thread pitch: millimeter (TP) 1.5 mm
- Product number (SAP): 86017954
- EDP number: 0205310
