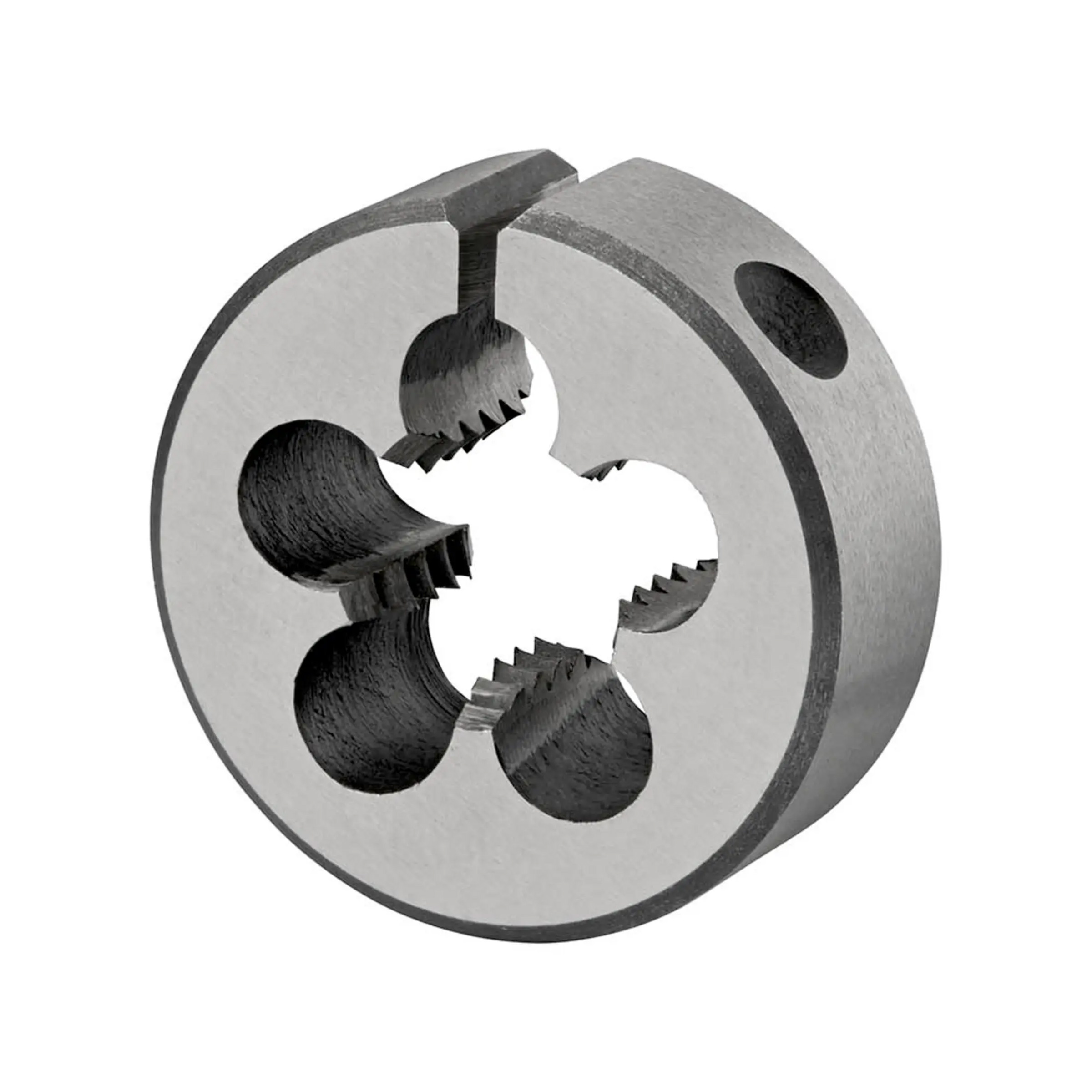

Dormer F300M8X1 HSS Metric Coarse Adjustable Die M8 x 1.25mm
The Dormer F300M8X1 is a single adjustable circular split die, for ISO-Metric thread M8 with 1.25 mm pitch, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.15mm, dimensions according to BS 1127:1950 standard with 1" outside diameter and 3/8" thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
Features:
- Bright (uncoated)
- Thread Form, Metric Coarse
- BS 1127:1950 – Round Dies Standards
- Die Thread Chamfer to Pitch Ratio (1.75×TP)
- High Speed Steel Tool Material
- Right Hand Rotation / Cutting
Specfication:
- Body diameter: fractional inch (BD) 1"
- Body diameter: millimeter (BD) 25.4 mm
- Overall length: fractional inch (OAL) 3/8
- Overall length: millimeter (OAL) 9.53 mm
- Thread diameter: millimeter (TD) 8 mm
- Thread diameter size (TDZ): 8
- Thread pitch: millimeter (TP) 1.25 mm
- Product number (SAP): 86017983
- EDP number: 0205266
