Eclipse ESPW8 Stillson Pattern Pipe Wrench 8 Inch / 200mm - 19mm Capacity

Eclipse ESPW8 Stillson Pattern Pipe Wrench 8 Inch / 200mm - 19mm Capacity

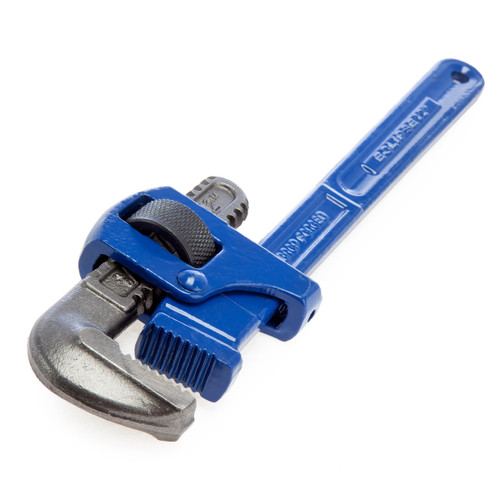

The Eclipse ESPW8 is an 8 Inch Stillson Pattern Pipe Wrench with a frame and handle manufactured from one piece of ductile iron casting. The flash hardened teeth on the pipe jaw have a 19mm capacity and are for use with copper and aluminium pipes as well as ferrous and non-ferrous metals.

Features:

• Hardened and tempered steel adjustment nut
• Stillson pattern pipe wrenches highly suitable for the professional plumber
• Available in a variety of lengths and pipe clamping capacities
• Guaranteed unbreakable ductile iron frame and handle for strength and durability
• Flash hardened teeth on the jaw increase wear resistance
• The nut abutment ensures all loading is transferred directly from the handle to the nut and jaw ensuring that the frame is not load-bearing, reducing the risk of frame failure
• The hardened and tempered steel adjustment nut gives a longer working life
• Precision machined screw thread and spring jaw remain open as pressure is applied for ease of use
• In normal use conforms to British Standard BS3594

Specification:

• Part number: ESPW8
• Length when opened: 8 Inch / 200mm
• Pipe capacity: 3/4 Inch / 19mm
• Jaw height: 5/8 Inch / 16.5mm
• Jaw depth: 1/2 Inch / 12mm

SKU: ECL-ESPW8
