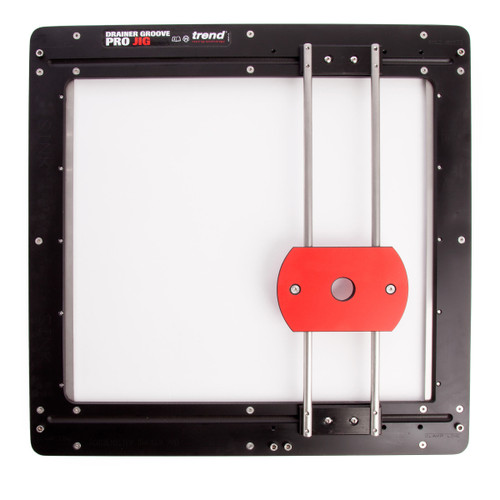

Trend DG/JIG Draining Groove Jig

The Trend DG/JIG Draining Groove Jig is designed for routing draining grooves in solid timber for Belfast type sinks. This well made Jig is a solid, hard-wearing piece of 12mm thick CNC machined phenolic measuring 59 x 63cm. It features 3 removable sloping runners for support and a cutter diameter check hole. Does not include cutter or guide bush.


  • Provides a 0.5-degree fall
  • Grooves at 50mm pitch and 455mm long
  • Sight marks for lining up
  • Three removable sloping runners for support
  • Cutter diameter check hole
  • Fixing holes for user-made stops for repetition work


  • Fall: 0.5 degree
  • Groove pitch: 50.0 mm
  • Groove length: 455 mm
  • Slat width: 19.8 mm
  • Length: 600 mm
  • Height: 585 mm
  • Width: 12 mm
  • Packaged Size: 40 x 640 x 600mm
  • Weight: 4.3kg
