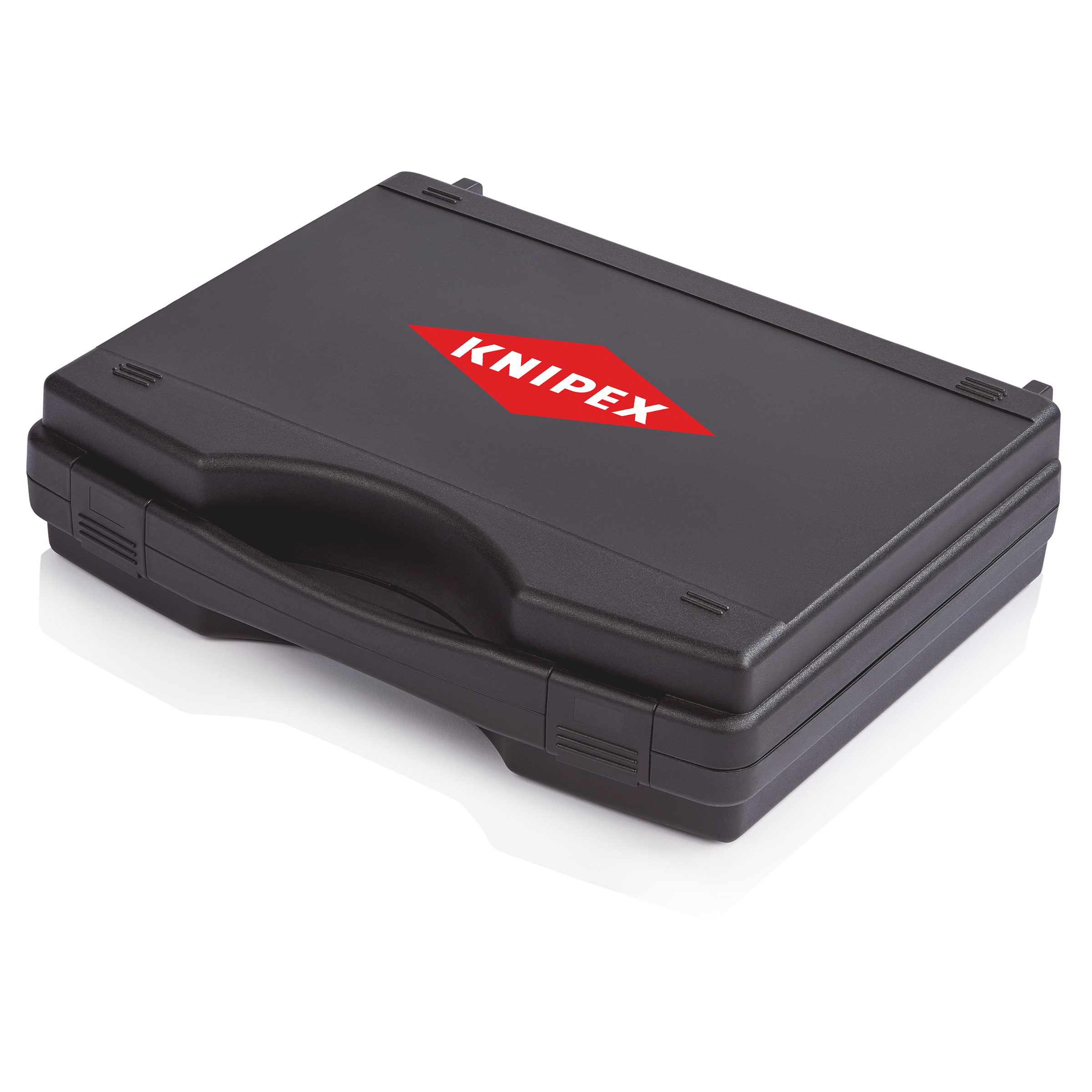

Knipex 979101 Tool Case for Photovoltaics (3 Piece)

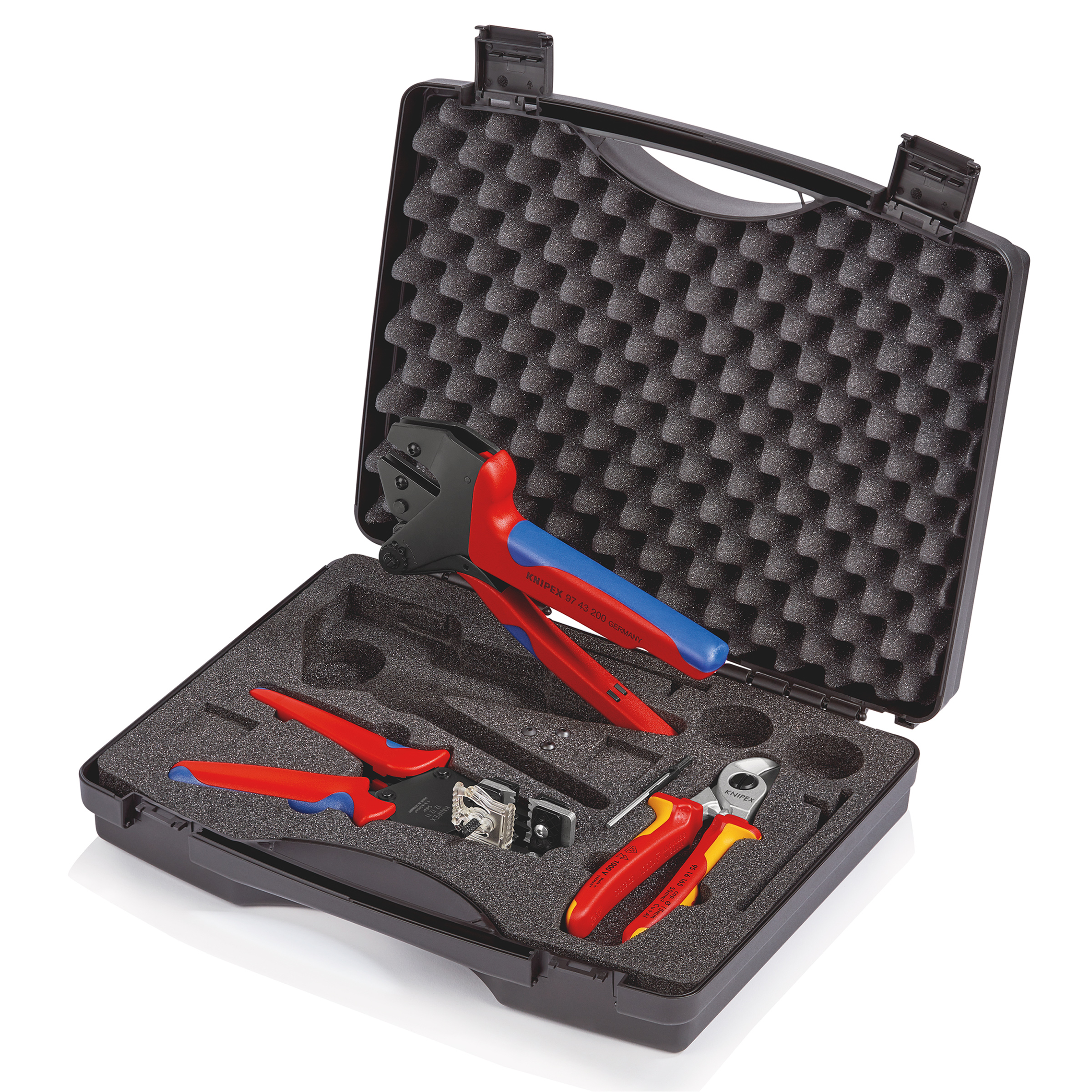

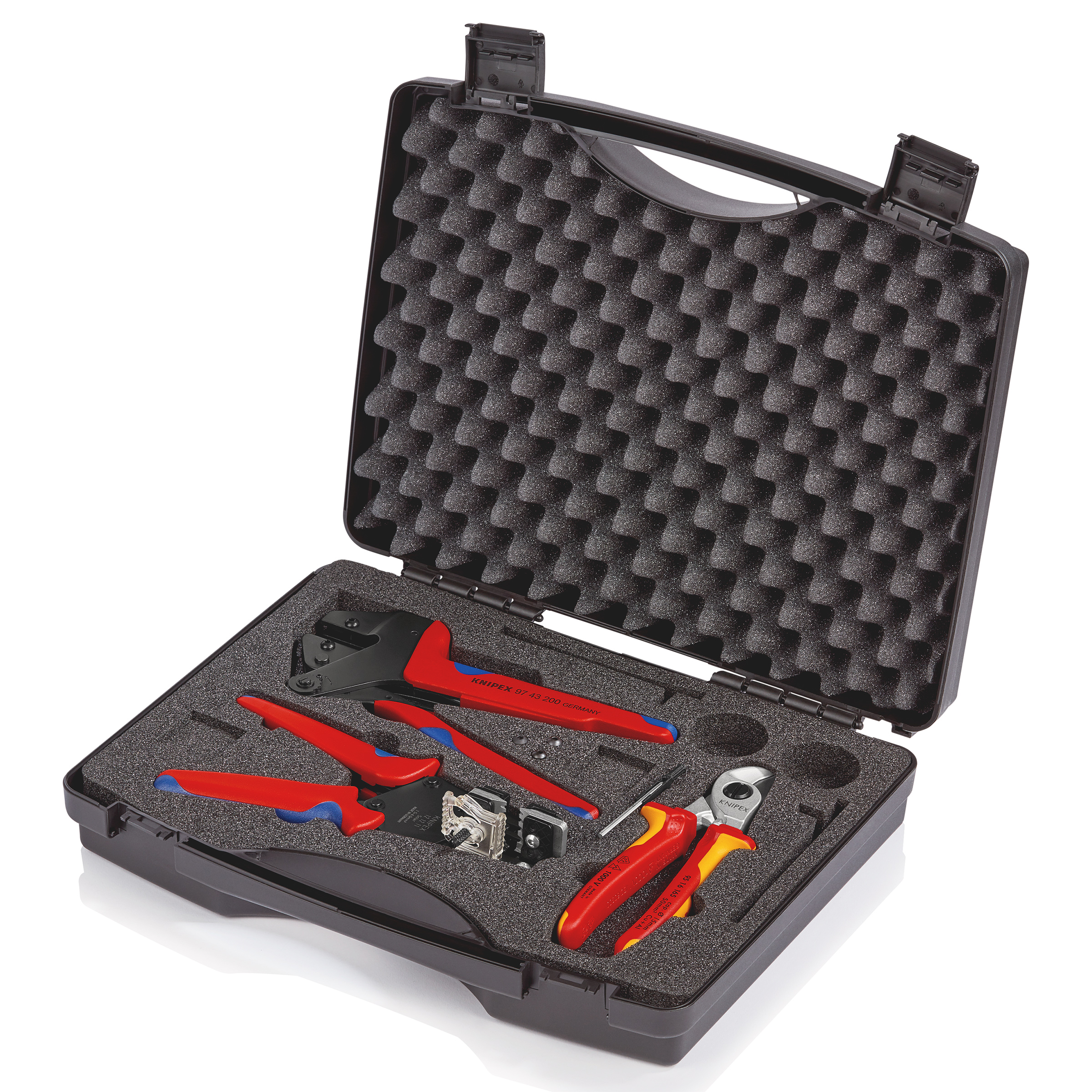

The Knipex 979101 Case has 3 tools for Photovoltaics. Precision Insulation Stripper 12 12 11 with adapted blades for smaller stripping capacities 1.5 / 2.5 / 4.0 / 6.0 mm². Cable Shears 95 16 165 for Cu cables up to Ø 15 mm. Crimp System Pliers 97 43 200 A for exchangeable crimping dies; crimping pressure has been set precisely (calibrated) in the factory. Without crimping dies - please order separately. With service tool (hexagonal key) for the change of crimping dies.
The Knipex 12 12 11 wire strippers have been specially developed for very tough and hard insulation materials on solar cables which need to almost be cut through entirely so that they can be pulled off. Two pairs of blades cut into the entire circumference of the cable insulation.
The Knipex 95 16 165 Professional cable shears are VDE tested and ideal for electricians. Diagonal cutters are not ideal for cable cutting, because their blades meet at an obtuse angle. By contrast, the cable shears from Knipex cut using a scissors action. They are therefore excellent for shortening cables in house wiring work. They professionally cut, for example, NYM-J 3x1.5 mm or NYM-J 5x2.5 mm and all other stranded and finely stranded Cu and Al cable up to 50 mm². Due to the nature of their cutting edges, the cable shears must not be used to cut hard wire, however.
12 12 11 Precision Insulation Stripper Features:
- For solar cables, specially adapted to multi-layered and RADOX insulations
- With additional cable support for a better centring of multi-layer insulated conductors in the stripping profiles
- Form-fit stripping of difficult-to-remove insulating materials made of PTFE, silicone, Radox®, Kapton and rubber; multi-layer too
- A second pair of blades holds the remaining insulation reliably in place
- Replaceable shaped blade adapted precisely to the respective conductor cross-section
- With length stop for constant stripping length during repetitive work
- Blade: special tool steel, oil-hardened
- Pliers body: steel
95 16 165 Cable Shears Features:
- For cutting copper and aluminium single conductors as well as multiple stranded cables
- Clean and smooth cut without crushing and deformation
- Not suitable for steel wire and hard drawn copper conductors
- Precision-ground, hardened blades
- Easy cutting with one-hand operation
- With guard
- Adjustable bolted joint, self-retaining screw
- High-grade special tool steel, forged, oil-hardened
97 43 200 Crimp System Pliers Features:
- Without crimping dies
- Just one tool for almost 1000 crimping applications
- Almost parallel crimping motion
- Consistently high crimping quality thanks to precision dies and ratchet mechanism (unlockable)
- Tools have been set precisely (calibrated) in the factory
- Optimum transmission of force due to lever action for fatigue-reduced operation
- Ergonomically designed handles
- Different locators for precise positioning of the connectors
- Crimping dies for applications not covered in the range offered here, may be available on request
- Special quality chrome vanadium electric steel, oil-hardened
Specification:
12 12 11:
- Stripping capacities in square millimetres: 1.5 / 2.5 / 4.0 / 6.0 mm²
- AWG: 16 — 10
95 16 165:
- Cutting capacity copper cable, multiple-stranded: 50 mm²
- Cutting capacity copper cable, multiple-stranded Ø: 15 mm
- AWG: 1 / 0
- VDE tested: yes
