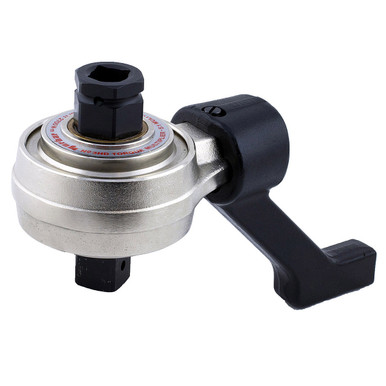

Norbar 17220 HT3 Torque Multiplier Kit 1300Nm (1/2in input, 3/4in output)

Norbar Norbar 17220 HT3 Torque Multiplier Kit 1300Nm (1/2in input, 3/4in output) @9893

SKU
NOR-17220
  • Product's Accuracy: +/- 4%
  • Tool Weight: 3.8 Kg
  • Operates between: 96.0 - 960.0 lbf-ft, 130.0 - 1300.0 N-m, 13.0 - 130.0 kgf-m
  • Multiplication Ratio: 5:1
  • Output Square: 3/4"
  • Input Square: 1/2"
  • Velocity Ratio: 5.333:1
  • Plate Weight: 1.3kg

Product Discontinued

We are sorry this product is not currently available but look at these great alternatives.

Details

Norbar 17220 HT3 Torque Multiplier Kit 1300Nm (1/2in input, 3/4in output)

The 'Highwayman' torque multiplier has been designed for use where it is necessary to provide higher torques than would otherwise be possible due to limitations of space or operator strength. Input to the multiplier is via a ratchet torque wrench set to one fifth of the desired output torque

Features:

  • 5:1 torque multiplication, accuracy guaranteed better than +/-4%
  • Robust construction means minimal maintenance and long life

Comes with:

  • Reaction bar
  • Reaction foot
  • Carry case

Specification

  • Product's Accuracy: +/- 4%
  • Tool Weight: 3.8 Kg
  • Operates between: 96.0 - 960.0 lbf-ft, 130.0 - 1300.0 N-m, 13.0 - 130.0 kgf-m
  • Multiplication Ratio: 5:1
  • Output Square: 3/4"
  • Input Square: 1/2"
  • Velocity Ratio: 5.333:1
  • Plate Weight: 1.3kg
