Scribe-Master DG/JIG Draining Groove Jig

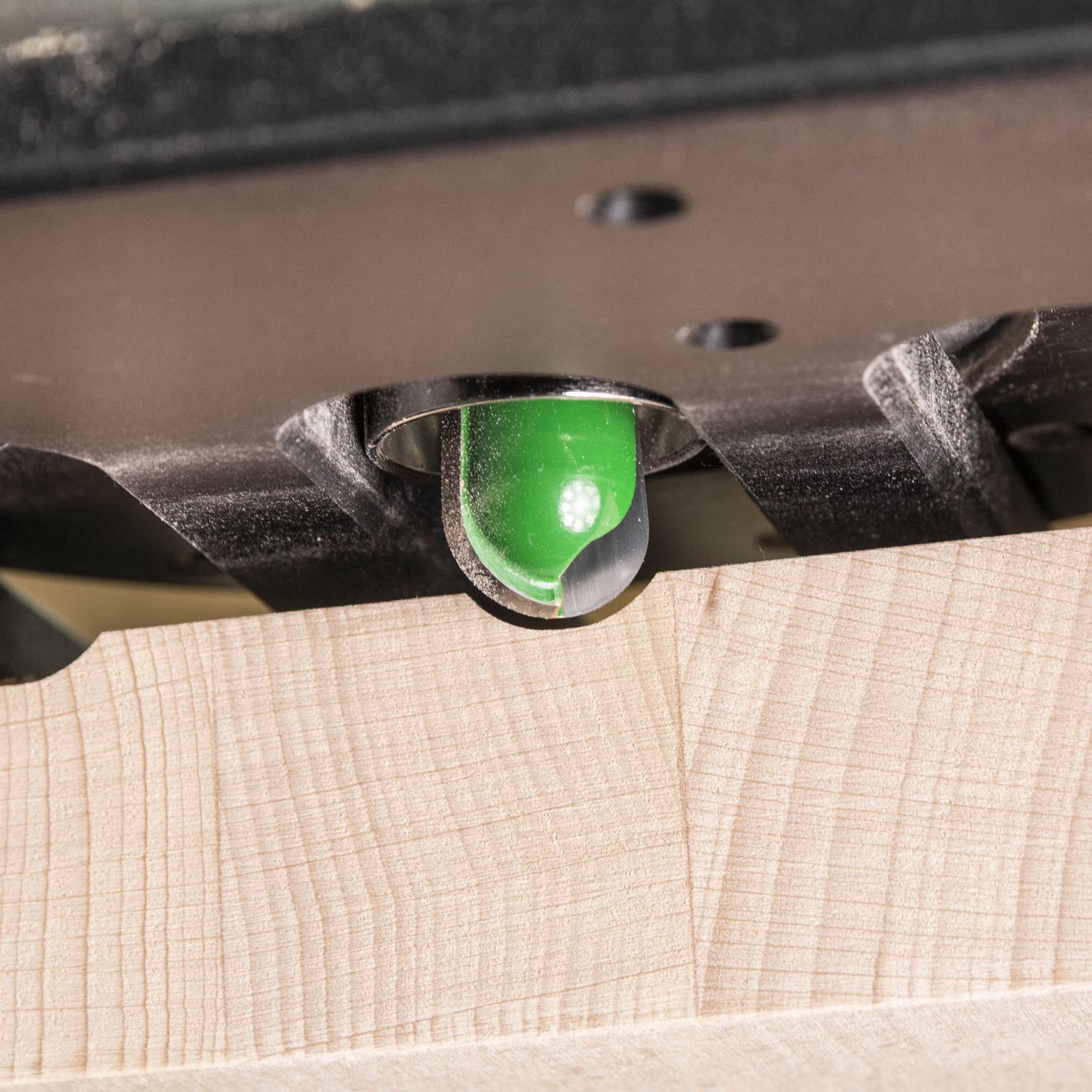

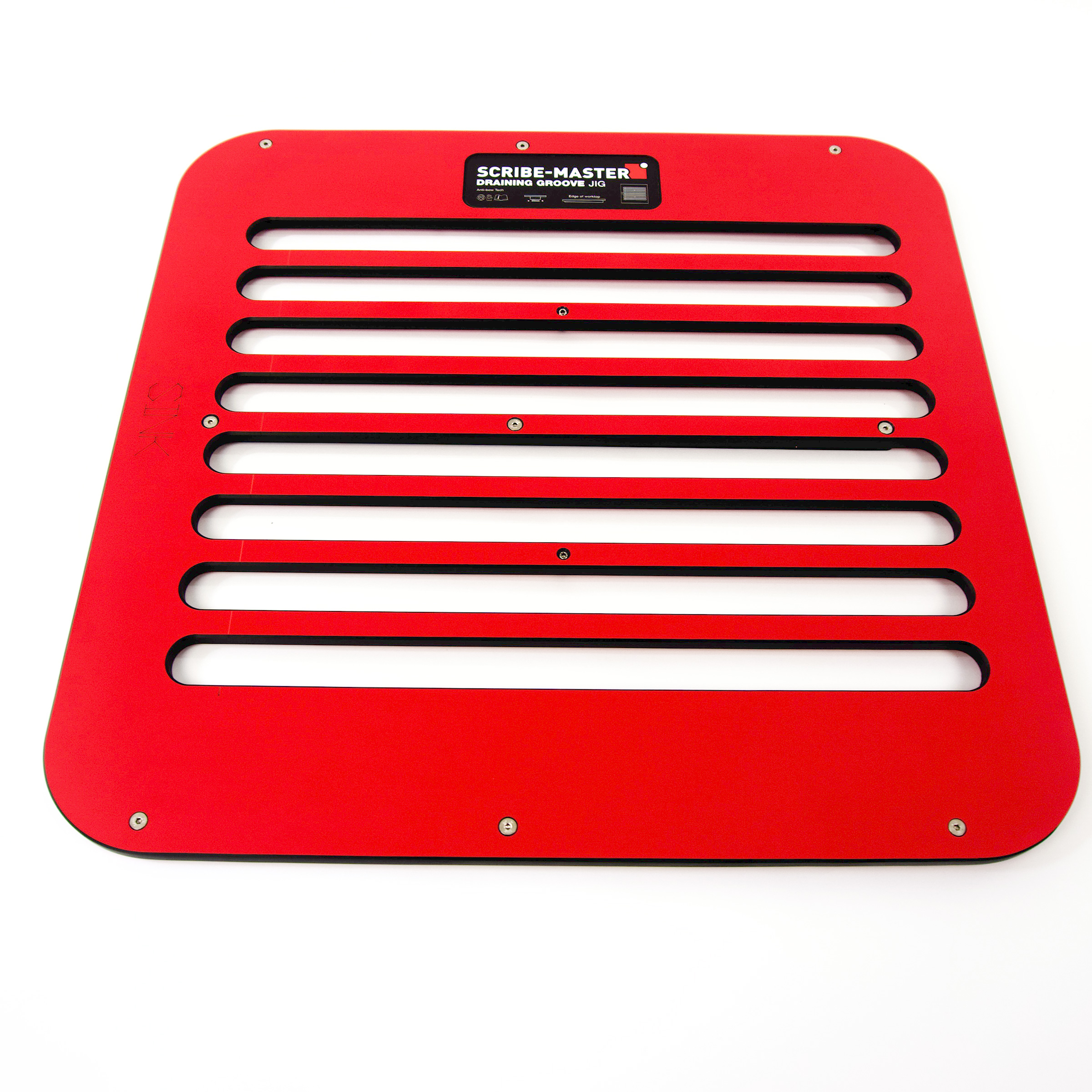

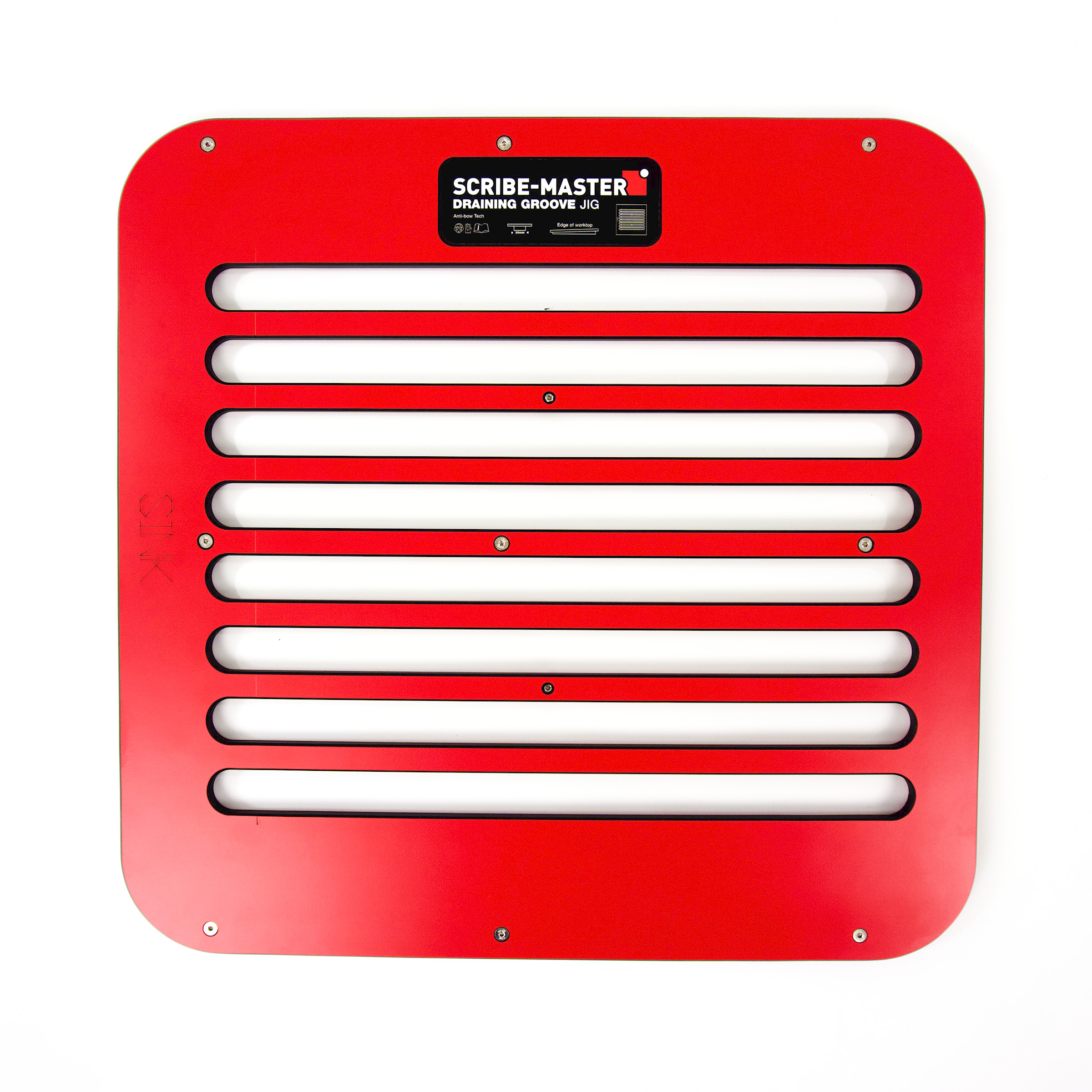

The Scribe-Master DG/JIG Draining Groove Jig is designed for routing draining grooves in solid timber for Belfast type sinks. With built-in 0.5º fall & Anti-Bow Technology. This well-made Jig is a solid, hard-wearing piece of 12mm thick CNC machined phenolic measuring 585 mm x 600 mm. It features 3 removable sloping runners for support and a cutter-diameter check hole. Does not include cutter or guide bush.
The UK’s number one name in Woodworking Jigs. Scribe-Master has been manufacturing high-quality jigs for major companies in the woodworking industry for the last eight years. ‘You might not have heard the name, but you will have definitely seen our jigs’
Features:

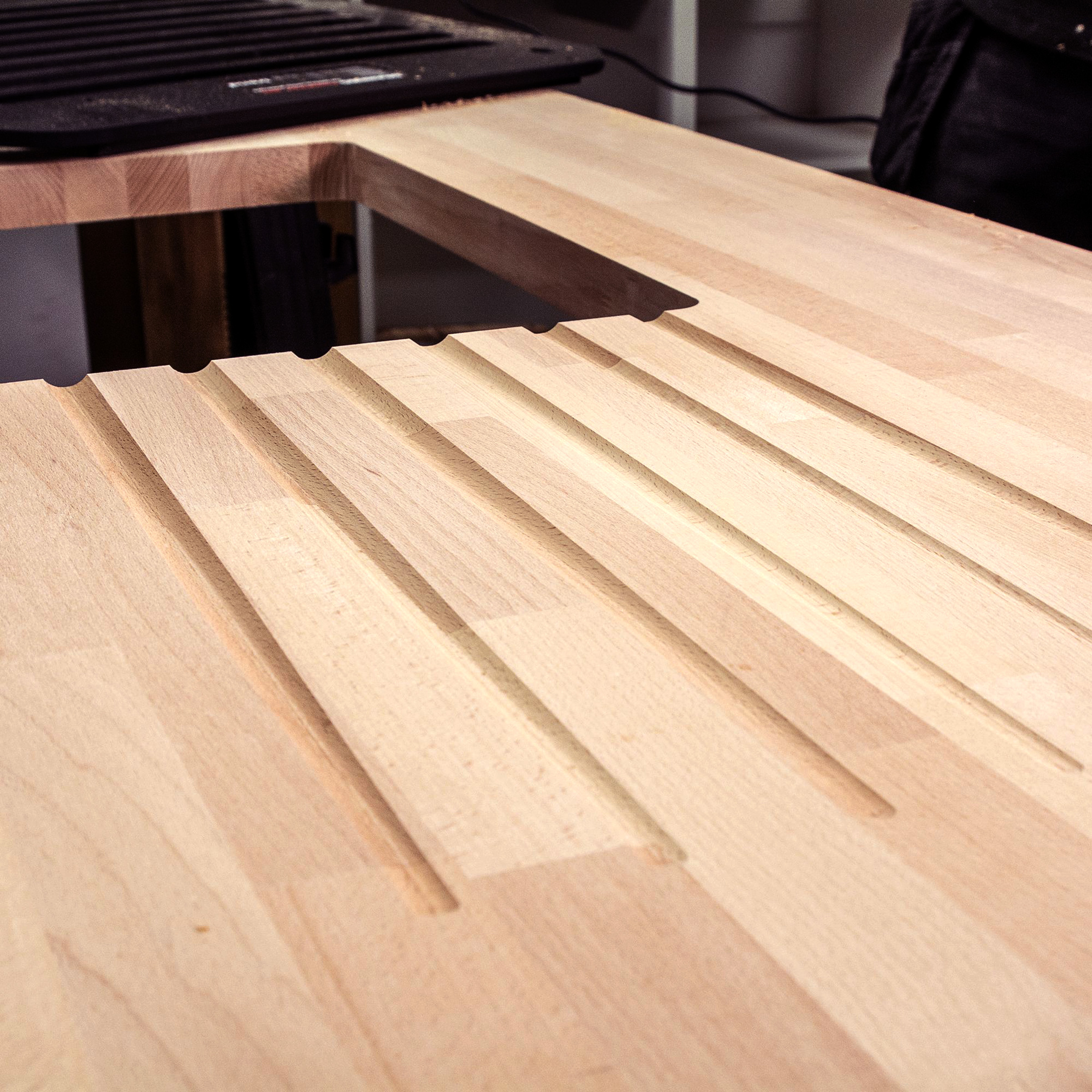

- For routing draining grooves in solid timber for Belfast type & under-mount sinks.
- Anti-Bow Technology preventing ‘dishing’ in the worktop preventing water draining
- Manufactured from exterior grade high density laminate providing precision, strength and durability

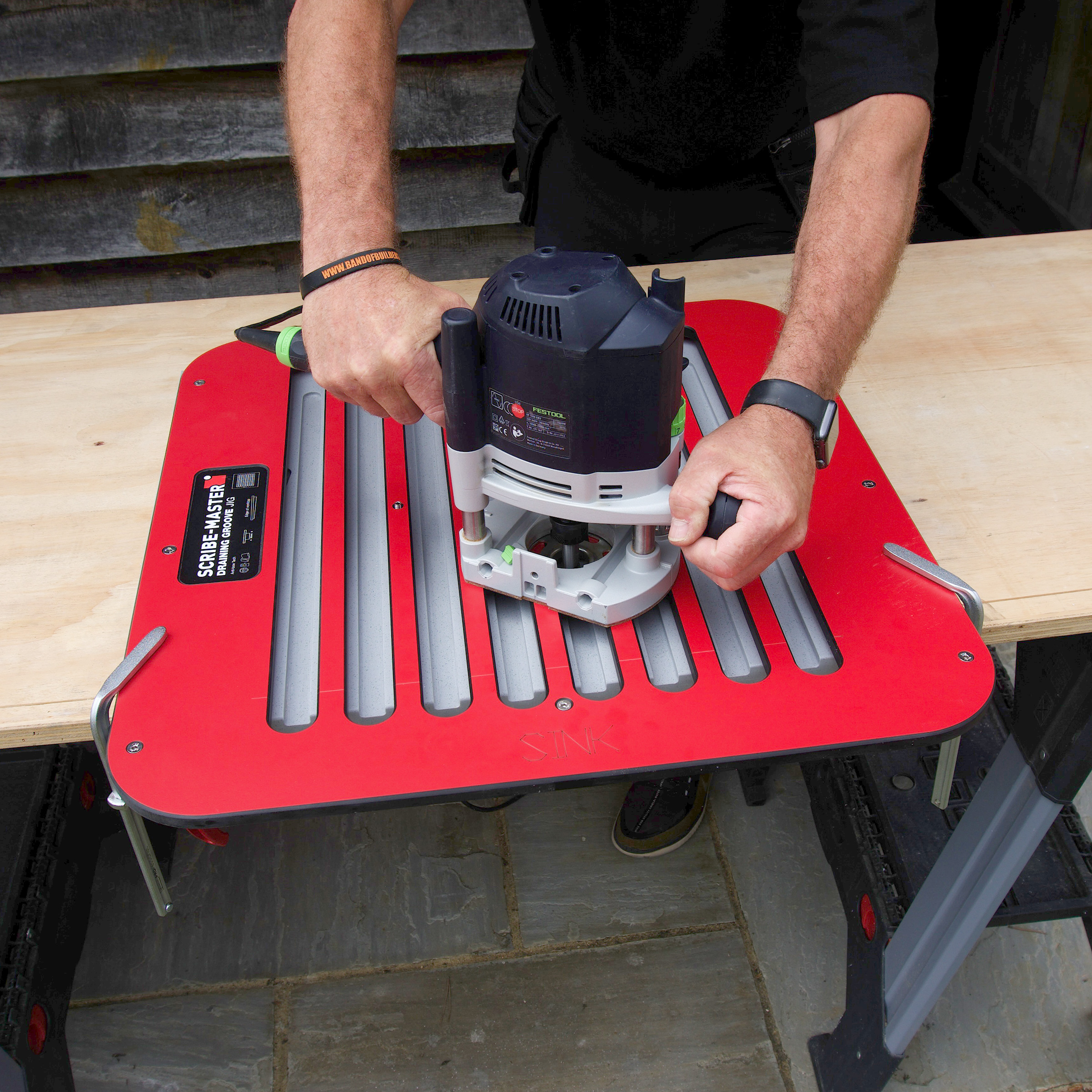

- 3 Jig support runners to maximise router support and give a built in 0.5° fall making set up faster and results more accurate with no need for spacers
- 8 Drainer Grooves at 50 mm pitch and 455 mm long
- Laser engraved sight lines for faster, more accurate setup
Specification:
- Fall: 0.5 degree
- Groove pitch: 50.0 mm
- Groove length: 455 mm
- Slat width: 19.8 mm
- Length: 600 mm
- Height: 585 mm
- Width: 12 mm 22
- Weight: 4.3kg
